Product Overview

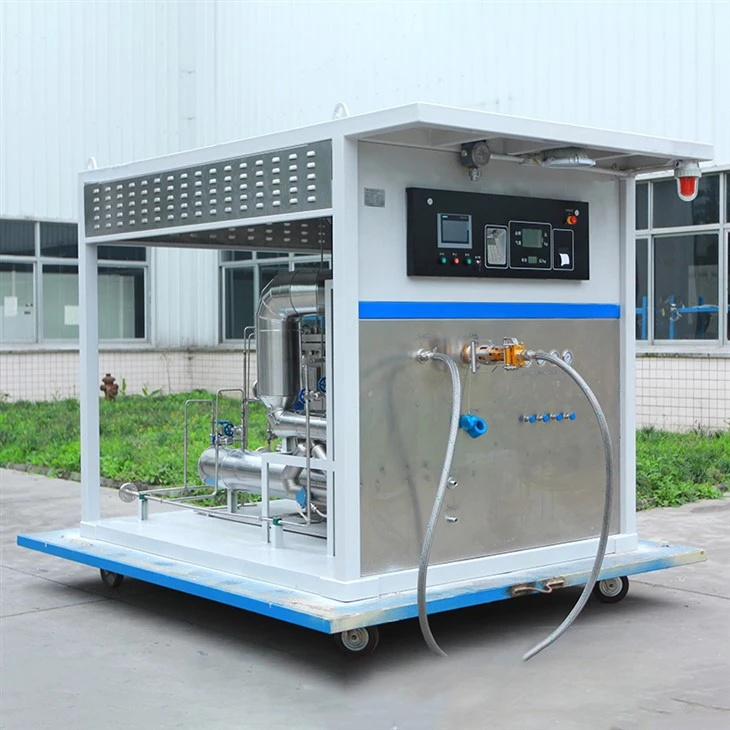

Skid-Mounted LNG Refueling Device yog lub compact LNG fueling system integrating a cryogenic twj tso kua mis, submerged twj, dispenser, vaporizer, piping, thiab PLC tswj. Nws hloov thiab xa cov roj ntsha liquefied kom muaj kev nyab xeeb thiab raug rau lub tsheb refueling ntawm ib ntus, mobile, los yog mus tas li fueling stations.
System Configuration
Cryogenic twj tso kua mis- Muab qhov ruaj khov qis - qhov kub thiab txias ib puag ncig rau lub twj tso kua mis submerged thiab buffers LNG ntws.
Cryogenic Submerged Pump- Pressurizes LNG thiab xa mus rau lub dispenser ntawm tus nqi ntws ruaj khov.
LNG Dispenser- Kev ntsuas, tswj, thiab xa LNG kom raug rau hauv lub tsheb cia tank nrog kev ruaj ntseg ua haujlwm.
Cryogenic Piping & Valve System- Hloov LNG los ntawm lub tshuab nqus tsev-cov kav dej tsis muaj steel hlau nrog cov li qub cryogenic, kos li qub, thiab kev nyab xeeb li qub.
Main Vaporizer- Vaporizes ib feem ntawm LNG kom tswj lub zog siab lossis muab cov pa roj carbon monoxide thaum xav tau.
Subcooled LNG Vaporizer- Ua kom sov me ntsis LNG ua ntej xa tawm kom txo qis thermal shock rau lub tsheb tso tsheb hlau luam.
Flow Metering System- Muab siab -LNG ntsuas qhov tseeb rau kev lag luam roj kev lag luam.
PLC Tswj System- Saib xyuas lub siab, qhov kub thiab txias, tus nqi ntws, thiab cov khoom siv thaum tswj lub tswb thiab kaw thaum muaj xwm ceev.
Kev Tiv Thaiv Kev Nyab Xeeb- suav nrog kev nres thaum muaj xwm txheej ceev, kev saib xyuas cov pa roj, kev tiv thaiv siab, thiab kev cuam tshuam rau kev ua haujlwm nyab xeeb.
Skid Base & Cov Qauv Ncej- Kev sib koom ua ke tag nrho cov cuab yeej siv rau hauv lub Hoobkas - sib dhos module rau kev thauj mus los yooj yim thiab kev teeb tsa.
Technical Advantage
Factory-kev sib dhos skid qauv minimizes ntawm - chaw ua hauj lwm installation thiab shortens project commissioning lub sij hawm.
Cryogenic submerged twj tso kua mis muab ruaj khov LNG siab rau ceev thiab zoo ib yam tsheb refueling.
PLC tswj tsis siv neeg ua haujlwm tiag tiag- saib xyuas lub sijhawm, tswj lub tswb, thiab kev tiv thaiv tsis siv neeg.
Siab - qhov tseeb flow metering txhim kho cov roj sib xws thiab txhawb nqa kev lag luam LNG dispensing.
Lub tshuab nqus tsev- insulated cryogenic piping txo cov cua sov thiab txo LNG boils -tawm poob.
Integrated kev ruaj ntseg interlocks pab tiv thaiv cov neeg ua haujlwm thiab cov khoom siv thaum lub sijhawm ua haujlwm tsis zoo.
Tej kev siv
LNG Truck Refueling Stations
Haum rau kev siv roj hnyav -lub luag haujlwm LNG- cov tsheb thauj khoom nrog kev ua haujlwm ruaj khov.
Bus Depots
Txhawb nqa LNG refueling teem rau pej xeem thauj nkoj.
Mining Operations
Muab rau ntawm -qhov chaw LNG roj rau cov tsheb mining hnyav hauv cov chaw nyob deb.
Logistics Centers
Txhim kho fueling efficiency rau kev lag luam tsheb thauj mus los.
Chaw nres tsheb roj ib ntus
Factory-kev sib xyaw skid tsim ua rau kev xa tawm sai sai rau cov haujlwm luv luv -.
Industrial Tsheb Fuel Supply
Cov khoom siv LNG rau kev tsim kho, chaw nres nkoj, thiab kev lag luam tsheb ua haujlwm ntawm cov pa roj ntsha.
Engineering & Customization Options
|
Yam khoom |
Muaj Kev Xaiv |
|
LNG filling muaj peev xwm |
Customized raws li lub tsheb fueling thov |
|
Pump muaj peev xwm |
Txawv tus nqi ntws thiab kev ntsuas siab |
|
LNG Dispenser |
Ib -nozzle lossis dual{1}}nozzle configuration |
|
Flow Meter |
Kev tswj xyuas kev lag luam lossis kev ntsuas kev lag luam |
|
Tswj System |
Siab tsis siv neeg PLC lossis customized tswj logic |
|
PLC Hom |
Siemens, Schneider, Mitsubishi, Allen-Bradley, lossis cov neeg siv khoom tau teev tseg |
|
HMI Lus |
Lus Askiv, Mev, Lavxias, Arabic, Fabkis, thiab lwm yam. |
|
Hluav taws xob Standard |
220V / 380V / 400V / 415V / 440V / customized zaus |
|
Kev tiv thaiv tawg |
ATEX, IECEx, ANZEx lossis qhov project- cov kev cai tshwj xeeb |
|
Piping Khoom |
Stainless hlau 304, 304L, lossis 316L |
|
Rwb thaiv tsev qauv |
Vacuum{0}} insulated los yog cryogenic insulated piping |
|
Vaporizer Hom |
Ambient cua vaporizer lossis customized configuration |
|
Kev sib txuas lus Interface |
Modbus, Profibus, Ethernet, chaw taws teeb saib xyuas |
|
Fueling raws tu qauv |
Customized raws li lub tsheb connector qauv |
|
Kev kho saum npoo |
Muaj txheej txheej txheej txheem rau kev nyab xeeb sib txawv |
|
Skid Layout |
Customized qhov ntev rau kev thauj mus los lossis qhov chaw txwv |
Kev Tswj Xyuas Zoo
Kev tshuaj xyuas cov khoom raw (PMI thiab cov ntaub ntawv pov thawj pov thawj)
Welding Procedure Qualification Record (PQR/WPS) pov thawj
Welder qualification validation
Dimensional soj ntsuam ntawm fabricated skid qauv
Cryogenic piping weld pom kev soj ntsuam (VT)
Tsis yog -kev kuaj kev puas tsuaj (RT/PT/UT raws li muaj)
Kev ntsuas lub zog siab
Helium leak test rau cryogenic pipeline system
Instrument calibration thiab flow meter verification
PLC ua haujlwm thiab I / O kuaj
Thaum muaj xwm ceev kaw (ESD) muaj nuj nqi pov thawj
Factory Txais Kev Xeem (FAT) ua ntej ua zaub mov xa tuaj
Kev Ua Raws Cai & Kev Lag Luam Standards
ISO 9001 Daim ntawv pov thawj
Kev tswj hwm zoo rau kev tsim khoom tsim thiab kev tswj xyuas zoo.
ISO 14001 Daim Ntawv Pov Thawj
Environmental Management system txhawb nqa ib puag ncig lub luag haujlwm tsim khoom.
OIML R117 (OIML 01)
Kev pom zoo thoob ntiaj teb rau kev ntsuas cov tshuab tuav cov kua uas tsis yog dej.
NMI Kev Pom Zoo
Kev ntsuas cov ntawv pov thawj txhawb nqa kev cai ntsuas kev ua raws cai hauv kev lag luam.
ANZEx Certification
Cov ntaub ntawv pov thawj tiv thaiv tawg rau cov phom sij - cov khoom siv hluav taws xob hauv Australia thiab New Zealand.
ATEX / IECEx (Yeem)
Cov qauv tiv thaiv tawg muaj nyob rau thaum xav tau los ntawm qhov project specifications.
FAQ
Q: Koj muab kev txhawb nqa dab tsi?
A: Peb muab cov txheej txheem tsim kev txhawb nqa, cov cuab yeej layout, lub hauv paus kos duab, cov ntaub ntawv hluav taws xob, kev cob qhia kev cob qhia, kev cob qhia tus neeg ua haujlwm, thiab kev pab cuam.
Q: Yuav ua li cas cov khoom xa tuaj?
A: Cov skid raug xa mus ua ib lossis ob peb modules nyob ntawm qhov ntev. Cov khoom siv tau ntim ruaj ntseg rau lub thawv lossis tawg - kev thauj mus los ntau.
Q: Yuav tsum muaj kev saib xyuas dab tsi?
A: Kev saib xyuas niaj hnub suav nrog kev tshuaj xyuas cov li qub cryogenic, kev ua haujlwm ntawm lub twj tso kua mis, ntsuas ntsuas, cov cuab yeej kev nyab xeeb, PLC lub tswb, thiab cov khoom sib khi raws li lub sijhawm saib xyuas.
Q: Koj qhov kev txiav txim yam tsawg kawg nkaus (MOQ) yog dab tsi?
A: MOQ yog 1 ua tiav skid -mounted LNG refueling device.
Q: Kuv puas tuaj yeem xaj tus qauv?
A: Ua kom tiav cov qauv khoom siv tsis muaj vim qhov system loj. Cov khoom ntiag tug lossis cov ntaub ntawv qhia txuj ci tuaj yeem muab rau kev ntsuam xyuas thaum tsim nyog.
Q: Cov nqe lus them nqi twg koj txais?
A: Cov ntsiab lus txheem yog 30% T / T tso nyiaj thiab 70% tshuav nyiaj ua ntej xa khoom. L / C tuaj yeem lees txais rau kev txiav txim tsim nyog.
Q: Cov ntaub ntawv xa tawm twg koj tuaj yeem muab tau?
A: Peb tuaj yeem muab Daim Ntawv Pov Thawj Ua Lag Luam, Cov Ntawv Teev Npe, Daim Ntawv Sau Npe, Daim Ntawv Pov Thawj Keeb Kwm, Daim Ntawv Ceeb Toom, Cov Ntawv Pov Thawj, Cov Ntawv Pov Thawj Ua Haujlwm, FAT Report, thiab lwm yam ntaub ntawv xav tau los ntawm lub khw muag khoom.
