Product Overview

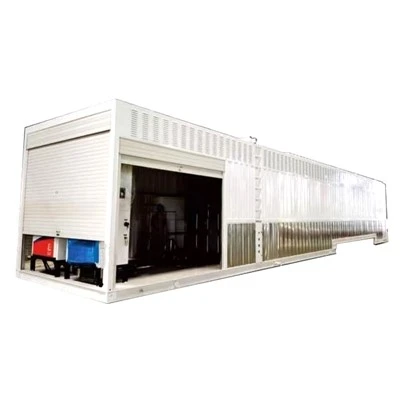

LNG Refueling Station (LNG Horizontal Storage Tank) yog tsim los rau LNG refueling station applications uas ruaj khov cryogenic cia, tswj kev tswj siab, thiab kev nyab xeeb ntev - yuav tsum tau ua haujlwm ntev. Lub kaw lus yog engineered rau LNG kev pab cuam ntawm kwv yees li -162℃thiab txhawb kev koom ua ke nrog LNG twj, vaporizers, thiab dispensing systems.
Lub tank qauv siv ob - phab ntsa tsim nrog lub tshuab nqus tsev rwb thaiv tsev kom txo tau cov cua sov ingress thiab tswj LNG hauv cov kua dej ruaj khov thaum khaws cia thiab hloov chaw.
Cov ntaub ntawv Parameter
|
Parameter |
30m³ Configuration |
60m³ Configuration |
|
Ua haujlwm nruab nrab |
Liquefied Natural Gas (LNG) |
Liquefied Natural Gas (LNG) |
|
Total Storage Capacity |
30m³ |
60m³ |
|
Hom rwb thaiv tsev |
High-Nqus Multi- Txheej Rwb thaiv tsev (MLI) |
Nqus Perlite rwb thaiv tsev |
|
Number of Submerged Pumps |
1 unit |
2 units |
|
Max. twj tso kua mis ntws |
340L / min |
680L / min |
|
Kev khiav hauj lwm siab |
1.6 MPa siab |
1.6 MPa siab |
|
Flow Meter Accuracy |
±1.0% |
±1.0% |
|
Pipeline tsim kub |
-196 degree |
-196 degree |
|
Tag nrho lub zog |
15-25 kW |
30-45 kW |
|
Suab nrov |
Tsawg dua lossis sib npaug li 55dB |
Tsawg dua lossis sib npaug li 55dB |
|
Instrumentation & Hluav taws xob Cheebtsam |
IECEx / ATEX Certified |
IECEx / ATEX Certified |
|
Tswj hom |
Tag nrho automated PLC tswj |
Tag nrho automated PLC tswj |
Engineering Features
Multi- txheej siab- lub tshuab nqus tsev rwb thaiv tsev ua ke nrog kev sim siab nruj tswj xyuas kev lag luam- ua tus nqi qis txhua hnub zoo li qub evaporation (BOG), txo qis cov khoom lag luam boil- tawm thiab roj poob thaum lub sijhawm tos ntev.
Tag nrho cov longitudinal thiab circumferential welds raug nruj radiographic los yog ultrasonic tsis yog -kev soj ntsuam kev puas tsuaj kom ua raws li ASME los yog CE siab hlab ntsha codes.
Lub nkoj sab hauv yog tsim los ntawm qib siab - qib austenitic stainless hlau (piv txwv li, SA240-304), kom ntseeg tau tias muaj kev cuam tshuam zoo tshaj plaws ntawm qhov kub thiab txias mus txog -196℃.
Dual kev nyab xeeb nyem li qub nrog kev hloov pauv valve manifold tso cai rau kev tshuaj xyuas niaj hnub lossis hloov pauv yam tsis muaj kev ntxhov siab lossis kaw qhov chaw nres tsheb.
Engineered nrog universal flange interfaces, peb cov kab rov tav tso tsheb hlau luam muab cov ntsaws ncaj qha - thiab - ua si kev koom ua ke nrog lub ntiaj teb cryogenic twj skids (xws li, Cryostar, ACD) thiab mainstream PLC dispenser tes hauj lwm.
Kev Tswj Xyuas Zoo & Kev Tshuaj Xyuas
Manufacturing ua raws li cov txheej txheem kev lag luam tswj nrog cov ntaub ntawv tshuaj xyuas theem:
Vuam:Cov txheej txheem tsim nyog (TIG / SAW nyob ntawm tus qauv)
Kev Ntsuas Hluav Taws Xob (RT):Siv rau qhov tseem ceeb weld seams
Kev kuaj ultrasonic (UT):Kev txheeb xyuas tus qauv weld
Kev Ntsuas Penetrant (PT):Surface defect tshuaj xyuas
Kev Ntsuas Siab:Hydrostatic kuaj ua ntej xa khoom
Vacuum Integrity Test:Helium leak detection rau rwb thaiv tsev kev ua pov thawj
Txhua qhov kev tshuaj xyuas tau ua raws li cov qauv siv ASME, EN, lossis GB raws li qhov yuav tsum tau ua.
Vim li cas Engineering Matters
LNG cov chaw nres tsheb ua haujlwm nyob rau hauv qhov kub thiab txias txias thiab cyclic pressures. Peb nruj me ntsis ua raws li kev lees paub thoob ntiaj teb cov lis dej num tiv thaiv koj cov peev peev, ua kom ntev - lub sij hawm tsim kev ntseeg tau, lav ultra- qis BOG tus nqi (tsawg dua lossis sib npaug li 0.15% / hnub), thiab kev nyab xeeb ntawm kev ua haujlwm tsis zoo nyob rau hauv lub voj voog siab loading.
Logistics, Rigging & Xa
Engineered rau kev nyab xeeb thoob ntiaj teb kev thauj mus los thiab kev teeb tsa sai hauv tsev:
Anti-Txoj kev hloov pauv
Hnyav-cov dej num sab hauv tiv thaiv lub nkoj sab hauv los ntawm yoj yoj thaum lub sij hawm thauj dej hiav txwv.
Rigging & Mounts
Nruab nrog FEA- txheeb xyuas qhov nqa nqa thiab cov qauv hlau eeb rau cov crane rigging thiab lub hauv paus tso.
Kev txuag nqi
Shipped nrog lub siab zoo Nitrogen (N2) daim pam los tiv thaiv ambient noo noo ingress thaum caij tsheb npav.
FAQ
Q: Lub koom haum TPI (Third-Party Inspection) koj ua haujlwm nrog?
A: Peb niaj hnub koom tes nrog SGS, TÜV, Bureau Veritas (BV), thiab Lloyd's Register los ua tim khawv txog hydro- kev sim, NDT cav, thiab lub tshuab nqus tsev vacuum ua ntej xa khoom.
Q: Peb yuav ua li cas kom paub tseeb tias lub tshuab nqus tsev ruaj ntseg thaum tuaj txog ntawm peb qhov chaw nres nkoj?
A: Lub tshuab nqus tsev tiv thaiv sab nraud yog ntsia rau ntawm lub tank manifold, tso cai rau koj pawg neeg tsim khoom hauv zos tuaj yeem tshawb xyuas qhov tseeb ntawm rwb thaiv tsev ua ntej unloading.
Q: Koj puas tuaj yeem hloov qhov kev sib txuas nozzle rau peb cov qauv kav dej hauv zos?
A: Yog. Tag nrho cov kav dej manifolds, flanges, thiab threads (NPT, BSP, lossis DIN) raug kho kom haum rau koj qhov chaw nres tsheb qhov kev teeb tsa uas twb muaj lawm thaum lub sijhawm teeb duab.
Q: Lub sij hawm ua tus txheej txheem rau 60m³ kab rov tav tank yog dab tsi?
A: Qhov nruab nrab ntau lawm yuav siv sij hawm 45 mus rau 60 hnub los ntawm kev kos npe kos npe - tawm mus rau qhov kawg ntawm kev ntsuas siab, nyob ntawm seb cov hlau phaj yuav khoom.
Q: Koj puas muab tag nrho cov ntaub ntawv thiab cov ntaub ntawv kaw qhov project?
A: Yog. Txhua qhov khoom xa tuaj suav nrog Cov Pob Khoom Uas Ua tiav: cov khoom siv cua sov-number traceability, MTRs, NDT films/logs, thiab hydrostatic test daim ntawv pov thawj xav tau rau cov ntawv tso cai hauv zos.
